Dual Soap Injector System with Premium Hi-Lo Wash Lance
Custom built at our Image Wash Products headquarters in Hudsonville, Michigan, this dual soap wash system pairs our Suttner ST-164 dual downstream injector with the Premium Single Barrel Hi-Lo Wand, a high-pressure wash lance. Pick soap 1 or soap 2 at the injector, apply it at low pressure, then turn the knob on the wand to switch to full high-pressure rinse. There's no measuring soap, no refilling foam cannons, and no changing tips or attachments mid-wash.
It's the same proven setup as our Dual Soap Wash System with the Foaminator, built with a high-pressure wash lance instead of a foaming lance. Choose this version if you want to apply soap as a wet, low-pressure spray instead of thick foam and rinse at full pressure with the same wand. That's ideal for two-step touchless truck washing, fleet yards, and wash bays.
Use it with any of our soaps, including Touchless 1 & 2 Step Soap, Platinum Wash, Wash & Wax, and Wax Replacement.
Why Choose the Hi-Lo Wash Lance System?
- Two soaps, one system: the ST-164 dual injector lets you switch between two chemicals, such as Touchless Step 1 and Step 2, with a single valve
- Soap and rinse from one wand: turn the hi-lo knob for low-pressure soap application or full high-pressure rinse
- Consistent dilution every time: metering tips set the soap ratio, so you never mix by hand again
- Protects your pump: downstream injection keeps aggressive detergents out of your pressure washer
- Faster washes: no foam cannons to refill, no buckets, and no swapping lances between steps
- Built for your machine: nozzles and tips are sized to your pressure washer's PSI and GPM

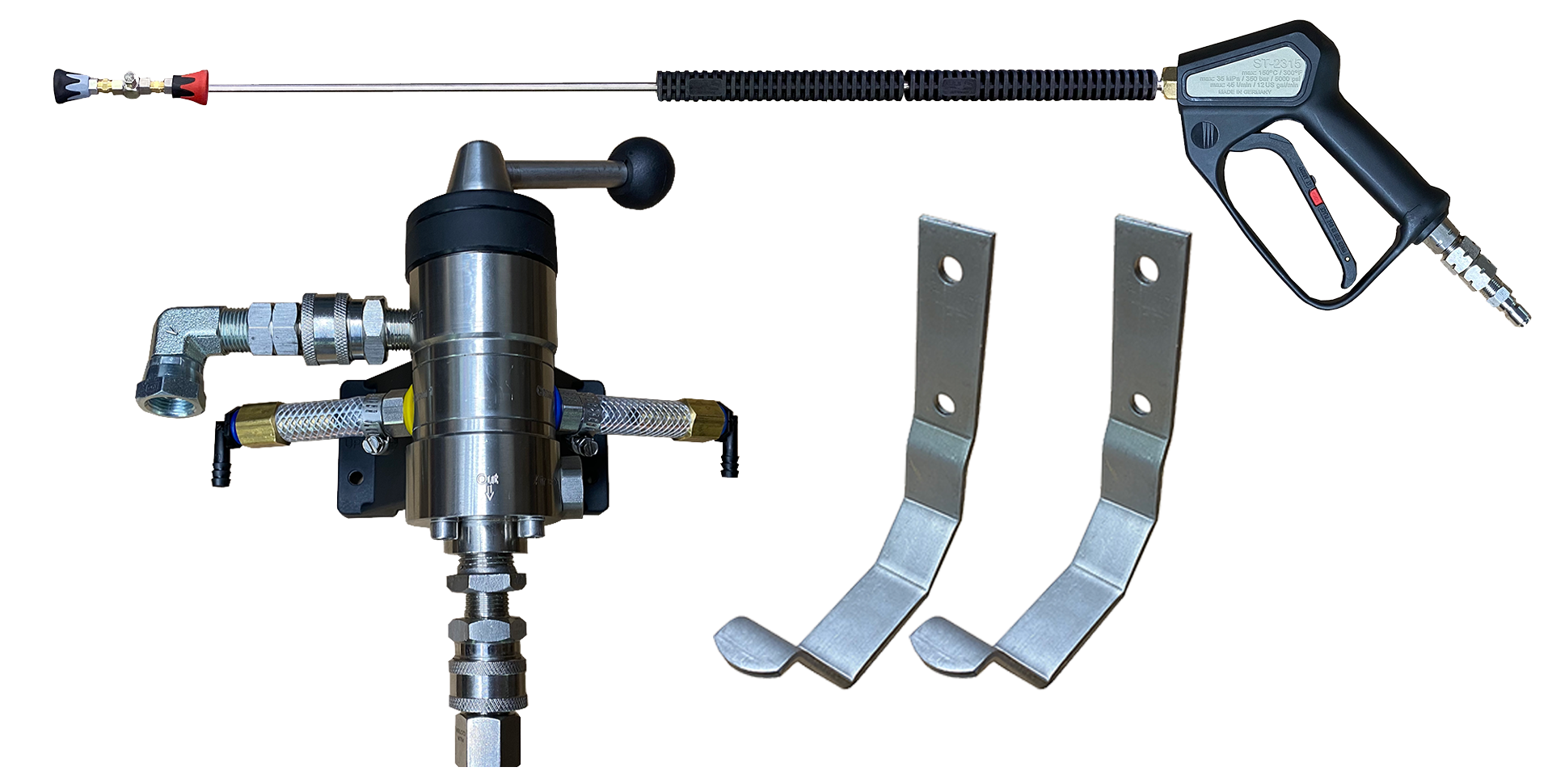

What's Included
- Suttner ST-164 dual soap injector

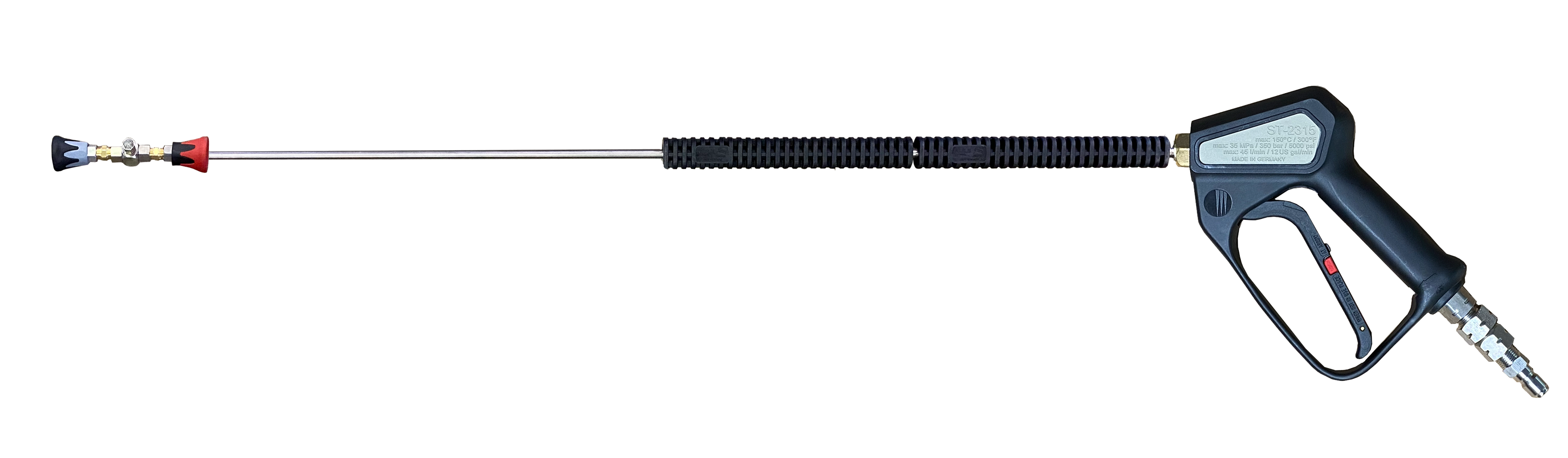

- Premium Single Barrel Hi-Lo Wand (high-pressure wash/rinse lance) with Suttner ST-2315 acid-resistant trigger gun
- Stainless J-hooks for wall-mount lance storage (2 hooks)
- 12-foot jumper hose for your pressure washer (injector inlet)
- Braided 1/4" soap hoses for drawing soap (two 10-foot lengths)
- Premium soap draw tubes with mesh screen (2 draw tubes; 5- through 275-gallon sizes available)
- Metering tips for precisely diluting your soap (2 bags of 6 pieces)
- Rinse tip customized for your pressure washer's PSI and GPM
Custom built for your pressure washer: after you place your order, Image Wash Products will call you to get your pressure washer's PSI and GPM before we build your system. The injector and lance tips are sized to work optimally with your exact machine. A pressure washer with a minimum of 2.5 GPM is required.
How the Suttner ST-164 Dual Soap Injector Works
A downstream injector sits between your pressure washer and your gun. When the wand is set to low pressure, the drop in pressure creates suction that draws soap from whichever container you've selected, meters it through the dilution tip, and sends it out the wand at the right strength every time. Switch the wand to high pressure and the injector stops drawing soap, so you get a clean rinse.
How to Use the Dual Soap Hi-Lo System
- High-pressure rinse the vehicle to wet the surface and remove loose dirt.
- Turn the injector valve to Step 1, set the wand to low pressure, and apply a light coat of soap, working from the bottom up. Don't rinse yet.
- Turn the injector valve to Step 2 and apply a light coat over the first, making sure you get full coverage.
- Set the wand to high pressure and rinse thoroughly from the top down, keeping the lance 6 to 12 inches from the surface.
Selecting Your Nozzle
Your rinse tip and injector are matched to your pressure washer's PSI and GPM. We'll confirm these with you by phone, or you can use the chart below to see which orifice fits your machine.
Frequently Asked Questions
What's the difference between this system and the Foaminator Dual Soap System?
Both use the same Suttner ST-164 dual injector, draw tubes, and metering tips. The Foaminator system uses a foaming lance that turns soap into thick foam. This system uses the Premium Single Barrel Hi-Lo Wand, a high-pressure wash lance that applies soap as a low-pressure wet spray and switches to full-pressure rinse with a turn of the knob.
Why do you need my pressure washer's PSI and GPM?
Downstream injectors and lance tips have to be sized to your machine's flow and pressure to draw soap correctly and rinse at full power. We build each system to your exact specs.
What size pressure washer do I need?
A pressure washer that delivers at least 2.5 GPM.
Can I run two different soaps?
Yes. The ST-164 draws from two containers, so you can run a two-step touchless soap or keep a wash soap and a wax or protectant hooked up at the same time.
Will soap run through my pressure washer pump?
No. The injector is downstream of the pump, so chemicals never pass through it, which helps extend pump life.
What containers does it work with?
Draw tubes are available for 5-gallon pails up to 275-gallon totes.
