Single chemical injector (one soap) by Image Wash Products. Features a ST-160 injector, draw tubes with braided lines and the Foaminator lance
Single Soap Wash System
Single Soap Wash System
Single Soap Wash System
Single Soap Wash System
Single chemical injector (one soap) by Image Wash Products. Features a ST-160 injector, draw tubes with braided lines and the Foaminator lance
Single Soap Wash System
Single Soap Wash System
Single Soap Wash System
Single Soap Wash System

Single Soap Wash System

Regular price $729.99

Unit price per

Style

Our single soap wash system is a great foot in the door to downstream injection. No more filling up foam cannons, instead have your chemical injected right into your lines at the perfect ratio for a fast and enjoyable washing experience. Produces super sudsy foam that'll cling to your surface and maximize your chemical's working time. An ALL IN ONE device to help you operate at maximum efficiency and provide top of the line results. You can pair your single soap wash system with either our foaming nozzle (simply attach to your existing trigger) or our top of the line foaming lance we call "The Foaminator".



Single Soap Wash System: Full Lance Assembly

The Foaminator Foam/Rinse Lance

Pairing our Single Soap Wash System with our custom lance (The Foaminator) is the ultimate combo that will speed up your wash time saving you time and money. Make swapping attachments, dealing with foam cannons, and using buckets a thing of the past.

What's Included:

  1. The Foaminator Wash/Rinse Lance
  2. ST-160 single injector
  3. Braided soap hose (5 feet)
  4. Premium soap draw tubes with mesh screen(1)
  5. Metering tips for precisely diluting your soap

Foaminator Single Injection System

Single Soap Wash System: Foam Nozzle Assembly

Single Soap Injection System

Our Premium foaming nozzle kit is a highly efficient, light weight, and more affordable option for those looking for a great way to ditch the foam cannons and upgrade their wash game. An excellent way of increasing efficiency while decreasing the amount of elbow grease and downtown you experience washing multiple vehicles. The ST-75 foaming nozzle seriously packs a punch; get more range, more foam, and get more done with this custom built kit.

What's Included:

  1. ST-75 Foaming Nozzle with 1/4" male plug
  2. ST-160 Injector
  3. Braided soap hose (5 feet)
  4. Premium soap draw tubes with mesh screen(1)
  5. Metering tips for precisely diluting your soap

Single Soap Injection Kit W/Foam Nozzle

How It Connects To Your Existing Setup:

Please note Image Wash Products will call you after placing your order to get information such as PSI and GPM from your pressure washer prior to building your order. These injectors and foam heads are custom built to work optimally with your exact pressure washer so we will need specifications to proceed with building your system.

Once you receive your kit it is ready to be attached right to your trigger. Your Trigger should have a 1/4" Female Socket on it so you can quickly switch between your foam and rinse nozzle/barrel.

  1. 1/4" SS Male Plug
  2. ST-75 Foaming Nozzle
  3. Custom Foaming Nozzle tuned for your pressure washer
  4. Your Trigger (Trigger not included with kit)

Connecting ST-75

Suttner ST-160 Single Soap Injector

How It Works:

Thanks to..well science these downstream injectors change the pressure in the lines which draw soap right out of the bottle straight into your selected gun and comes out perfectly diluted every time.

  1. 3/8" SS Male Plug
  2. 3/8" SS Female Socket
  3. Chemical Pick Up Tub Barb (Inlet)
  4. Dosing Nozzle

ST-160 Injector Graphic

Selecting Your Nozzle:

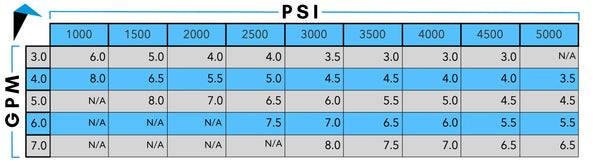

To do this you will need to select the orifice that is right for your pressure washer based on its PSI and GPM. Once you have your PSI/GPM you can use the chart below to select the right nozzle.

Calculate Your Nozzle Size

Image Wash Products (Formerly Reflections Wash Product)
